Comparing Automatic vs. Traditional Curb Laying Methods

Technical Differences Between Automatic and Traditional Curbing Methods

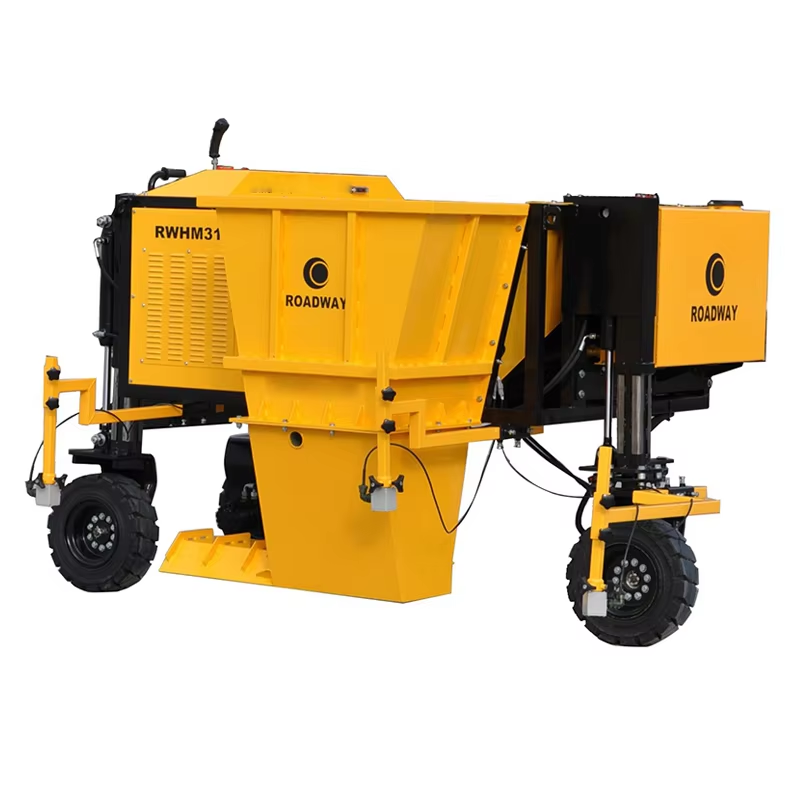

How slipform pavers work in automatic curb laying

Curb pavers work their magic through a continuous extrusion method that's revolutionizing road construction. The process starts when fresh concrete gets poured into a specialized mold controlled by hydraulic systems. As it moves forward steadily, built-in vibrations shake out those pesky air bubbles that weaken the final product. No more setting up temporary forms required! Crews can now install anywhere between 300 to maybe even 500 feet of curb every single hour depending on conditions. What really stands out though is how these self-driving machines handle multiple tasks at once. Drainage channels, median barriers, and all sorts of custom curb designs get created during just one pass across the site. This capability cuts down on both time spent and materials wasted during complicated road projects.

Traditional curbing process: Formwork, labor, and curing steps

The old school approach to curbing involves building wooden or metal forms by hand. Concrete gets poured into these temporary molds, then crews have to sit around waiting anywhere from a day to two days for it to set enough before taking those forms away. Usually takes about three to five guys working together just to handle 100 feet worth of curb, and there are always those ugly seams showing where different sections meet. When bad weather hits like rain or freezing temperatures, projects get delayed even longer than they would with machines doing the job because the concrete just won't cure properly in those conditions. We're talking roughly 15 to 20 percent extra time added onto schedules during these situations.

Role of hydraulics, sensors, and GPS in modern automatic curb pavers

Modern automatic pavers integrate three key technologies for precision:

1. Hydrostatic drives adjust mold height and angle to accommodate slopes up to 45°
2. Laser sensors maintain vertical accuracy within ±1/8 inch during operation
3. RTK-GPS ensures placement within 0.5 inches of design specifications

These systems allow automatic pavers to navigate tight radii and elevation changes seamlessly—challenges that would require frequent repositioning of formwork in traditional setups.

Efficiency and Speed: Automatic vs. Manual Curb Installation Performance

Linear Feet Per Hour: Measuring Output of Automatic Curb Paver Systems

Automatic curb pavers today can lay down around 200 to 300 linear feet each hour, way faster than what manual crews manage. Manual work typically gets about 50 to 80 feet done when four people are working together, according to data from the Construction Efficiency Institute in 2023. The reason automatic machines have this kind of edge is simple really they cut out all the time wasted on setting up forms and waiting for things to cure. Another big plus is those hydraulic pressure systems that keep the material flowing consistently. This means fewer stops and starts because of mistakes in placement something that happens in roughly one third of all manual paving jobs, as noted in a recent case study by the National Asphalt Pavement Association.

Impact of Weather, Terrain, and Downtime on Both Methods

Automatic pavers handle bad weather better because they have those sealed delivery systems, but even so, when dealing with really steep slopes over 15 degrees, workers still need to step in about 1 out of every 5 times during automation projects, as noted in that recent 2023 study on construction tech. Rainfall creates major headaches for traditional methods too, holding up the curing process anywhere from 12 to almost two full days. Automated setups using polymer stabilized concrete? They bounce back much quicker, only needing 2 to 4 hours after rain stops. Looking at actual operation times tells another story. Machines stay running around 82% of the time while human teams manage only about 63%. Why the gap? Well, machines don't get tired and take those long coffee breaks, plus they reset themselves way faster between tasks.

Cost-Effectiveness Analysis of Automatic Curb Pavers vs. Traditional Labor

Upfront Investment vs. Long-Term Savings with Automatic Curb Pavers

Getting started with automatic curb paver systems means spending between $150k and $450k upfront, which is roughly three to five times what traditional formwork tools cost. But according to industry research, most businesses see their money back within 18 to 42 months. How? These systems need fewer people on site – just 3 to 5 operators compared to the usual 8 to 12 workers required for manual methods. Plus they can run nonstop day and night without breaks. For big projects covering lots of ground, the savings really add up. Contractors working on extensive roadworks typically pocket over $2.1 million for every 15 kilometers completed when using these machines. The reason? Projects finish about 38 percent quicker, and there's also around 60 percent less maintenance needed down the road (NAPA reported this in 2023).

Labor Cost Reduction and Workforce Requirements in Traditional Curbing

Traditional curbing allocates 55–70% of project budgets to labor for formwork, pouring, and finishing. Installing 1km of curb takes 120–150 labor-hours manually, compared to just 40–55 hours with automation. Workforce shortages intensify costs—34% of contractors report paying 15% more in overtime due to skilled labor gaps (AEM Skills Survey 2024).

Maintenance, Operational Costs, and the Automation Cost Controversy

While automatic systems reduce curing defects by 83%, they incur annual maintenance costs of $12,000–$18,000 for hydraulic components and GPS calibration. Critics argue this offsets savings on smaller projects (<5km), but data shows machine-laid curbs require 23% fewer repairs over ten years, improving lifecycle cost efficiency despite higher upfront operational expenses.

Precision, Quality, and Durability Outcomes in Modern Curb Installation

Consistency and Tolerance Levels in Machine-Led vs. Hand-Formed Curbs

Curb pavers that work automatically can achieve really consistent results down to the millimeter thanks to their built-in GPS systems and hydraulic molds. These machines keep everything straight and true along lengthy sections, staying within about 3mm either way when it comes to cross-section dimensions. Things are different with manual techniques though. When workers use wood forms and finish things by hand, there's usually quite a bit more variation, sometimes up to 8mm because people aren't perfect and ground surfaces aren't always level either. Research published last year showed that going automated cuts down on these kinds of dimensional problems by around 72 percent. That makes a real difference for projects needing to comply with accessibility standards set by ADA regulations as well as proper drainage slopes which are essential for any good construction job.

Error Rates and Long-Term Durability Influenced by Installation Method

Robotic systems apply 1,200 PSI of compaction force during extrusion—unachievable in hand-poured installations—resulting in denser, more durable concrete. This leads to:

• 40% fewer cracks within five years (machine-laid curbs)
• Three times faster deterioration in hand-formed curbs under freeze-thaw conditions

Post-installation laser scans of 23 urban corridors revealed that automatic pavers maintained 94% structural integrity after ten years, while traditional curbs needed 2.3 times more joint repairs due to spalling and uneven settling.

Real-World Application: Case Study and Future Trends in Curb Laying

Urban Road Project Using Both Automatic and Traditional Curbing Methods

The 2023 Midwestern city redevelopment showed some interesting results when it came to automated paving equipment. These machines laid down about 2.8 times more curb each day than regular workers could manage, clocking in at 1,150 linear feet versus just 410 from human teams. Manual labor still wins out for those tricky curved sections though. But combining both methods cut down on weather delays by around 34%, something traditional crews struggled with constantly. There was one downside worth mentioning too. When first setting up the automatic system, material waste went up about 12% during those early adjustment periods. Still, most contractors see this as a temporary problem worth dealing with for the overall gains in productivity over time.

Emerging Technologies: AI, Telematics, and Future of Automatic Curb Pavers

Next-generation automatic pavers now feature:

• Lidar-guided slope adjustment that adapts to terrain shifts in real time
• Predictive maintenance algorithms cutting downtime by 41% (Concrete Construction Quarterly 2024)
• Telematics systems tracking material usage with 98.3% inventory accuracy

Early adopters report 22% fewer post-installation repairs, though 37% of contractors note challenges in training operators on advanced interfaces.

Strategic Recommendations for Adopting Automatic Curb Laying by Project Scale

Cities that install under five miles of curb each year tend to get the best return on investment when they go with shared leasing options for automatic pavers instead of buying their own equipment. Big construction firms generally see better results by splashing out on those machine mounted curing controls. And here's something interesting from industry data we picked up at the Construction Automation Council: when more than 15% of a project's design includes curves and bends, taking a step by step approach to automation actually saves around 18% compared to jumping straight into full automation from day one. Makes sense really since curved work just doesn't lend itself as well to complete automation right off the bat.

FAQ Section

What are slipform pavers and how do they work?

Slipform pavers use a continuous extrusion method where concrete is poured into molds controlled by hydraulic systems, allowing for efficient and seamless curb installation without temporary form setups.

How does traditional curbing differ from automatic methods?

Traditional curbing involves manually assembling forms and waiting for concrete to cure before removing them, requiring more labor and time compared to the automatic process which uses self-driving machines for continuous laying.

What technologies are integrated into modern automatic curb pavers?

Modern automatic pavers integrate hydrostatic drives, laser sensors, and RTK-GPS for precision in curb installation, accommodating slopes, maintaining vertical accuracy, and ensuring proper placement.

Are automatic curb pavers cost-effective compared to traditional labor?

Although automatic curb pavers have higher upfront costs, they offer long-term savings with faster project completion, reduced labor requirements, and fewer maintenance needs, making them more cost-effective over time.
