Vibratory Roller RWYL21

Walk-behind single drum road roller RWYL21

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn.

1. Honda gasoline engine;

2. Imported hydrostatic drive unit drives the machine steppless speed walking;

3. Plane gear structure, is easy to adjust the height of handrail;

4. With CE ISO certificate.

Type	RWYL21
Run
Speed	0-2.8km/h(Forward and back)
Climbing capacity in theory	30%
Compaction
Static load	45N/cm
Nominal amplitude	0.6mm
Vibration frequency	70Hz
Exciting force	15KN
Water tank volume	15L
Walking
Drive	Hydrostatic drive
Vibration	Mechanical drive, automatic clutch
Engine
Model	HONDA GX160
Type	Gasoline engine, air cooled, 4stroke, OHV, single cylinder
Power	5.5hp/3600rpm
Oil tank volume	3.6L
Lubricant L	0.6L
Fuel consumption	313g/kWh
Dimension
Width of steel wheel	600mm
Diameter of steel wheel	450mm
Total length(keep handrail level)	1420mm
Total width	750mm
Total height(keep handrail upright)	1100mm

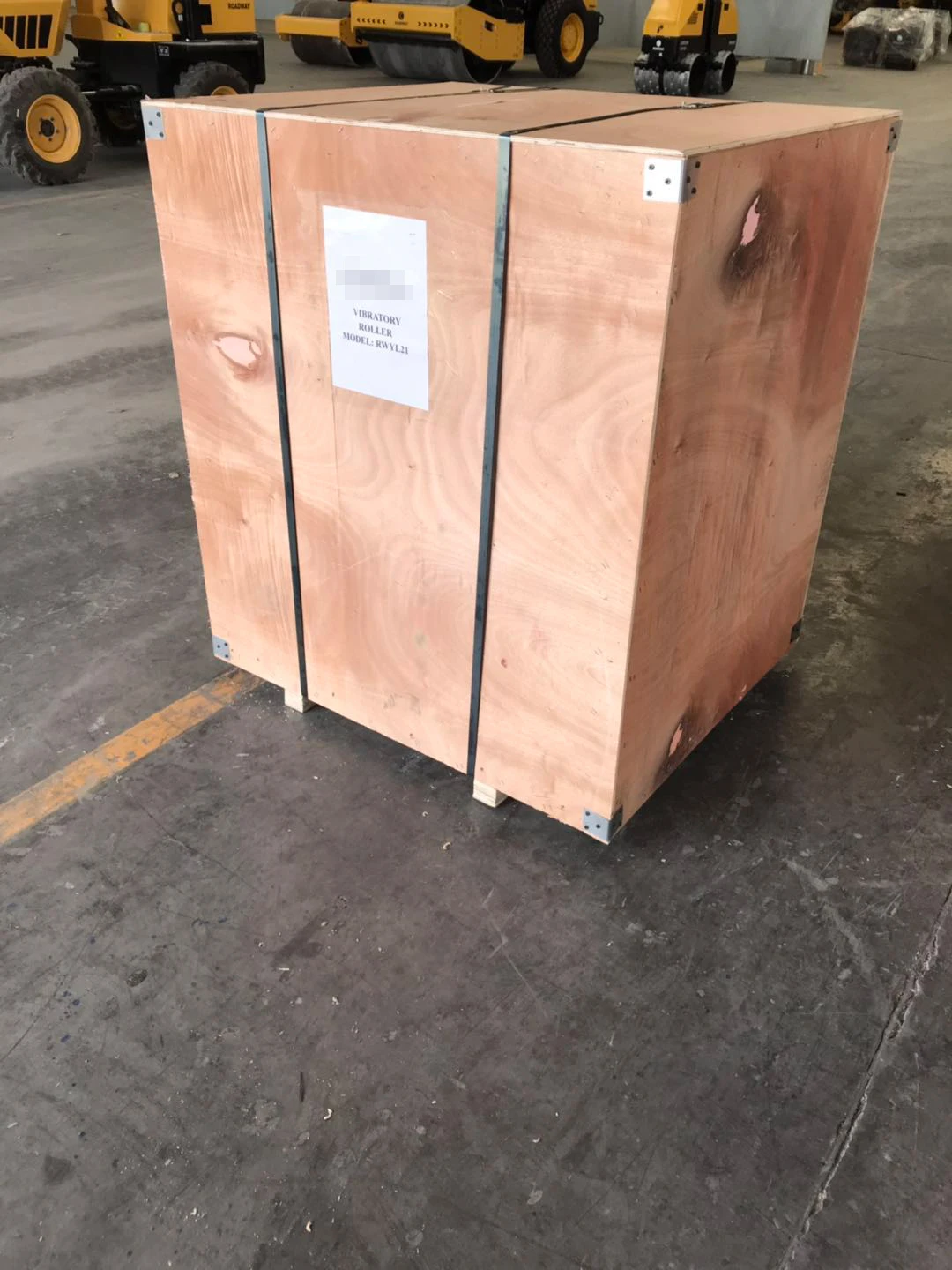

Packing size	1050x900x1200mm
Weight
Working weight	280kg
