Curb Paver RWHM41

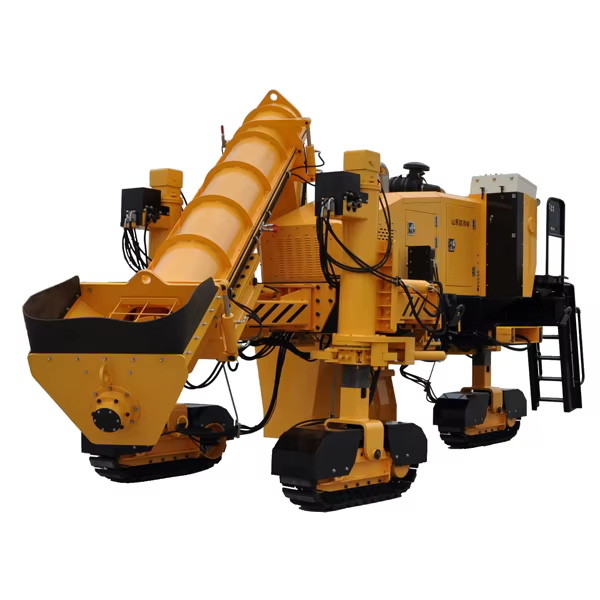

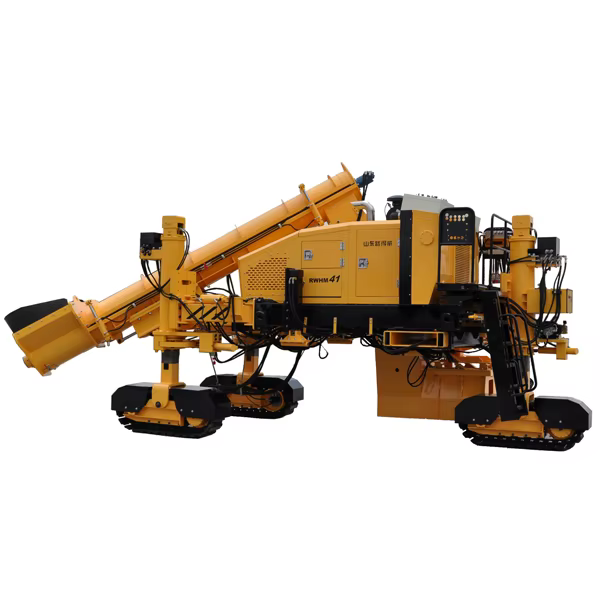

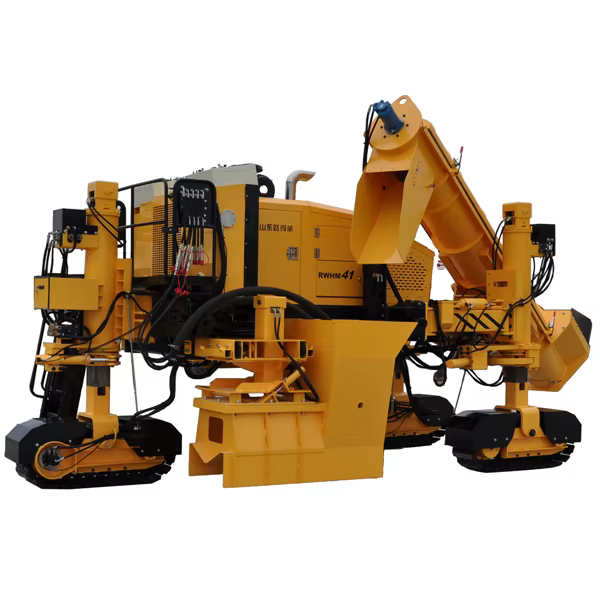

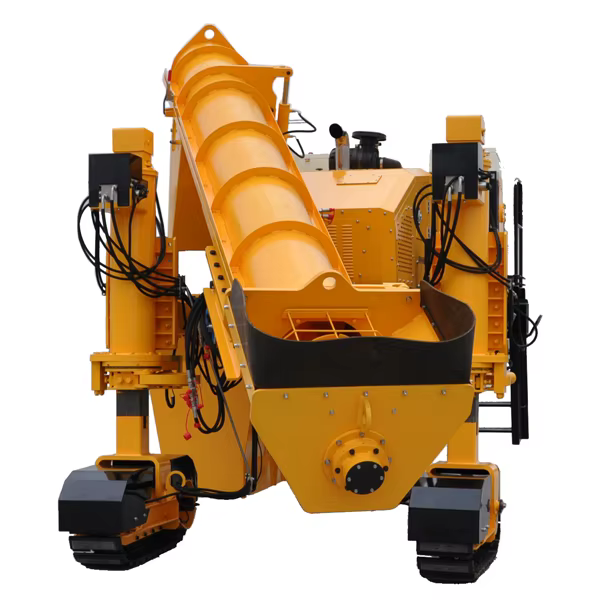

Automatic Curb Paver RWHM41

3. With imported Danfoss hydraulic variable plunger pump, drives machine in stepless speed

4. With U.S.A hydraforce brand hydraulic control valve, to control each function intelligently

5. With hydraulic rod, high frequency and strong power

6. The crawler walking mechanism with automatic tension cylinder to increase life of crawler

7. With patented steering system, flexible and convenient

8. With kinds of walking modes which can quickly switch

10. The mold hanging, dismantle hydraulically, easy working and labor saving

12. With Italy brand quick plugs for external connections of hydraulic powers, smooth insertion and extraction, no oil leak

Type	RWHM41
Engine
Model	Cummins 4BTA 3.9
Type	Diesel Engine, liquid cooled, four cylinder
Power	97kW/2200rpm
Engine oil volume	9L
Traveling system
Traveling mode	By crawler
Driving mode	By hydraulic
Steering mode	Collaborative/y\Yaw/Front wheel/Rear wheel/Automatic
Traveling speed	0-30m/min
Working speed	0-15m/min
Mold
Mold traverse adjustment	1000mm
Mold height adjustment	400mm
Max. height of the mold	1300mm
Max. width of the mold	1300mm
Vibrating rod
Hydraulic vibrating rod port	4
Volume
Fuel tank volume	120L
Hydraulic tank volume	280L
Water tank volume	120L
Machine height adjustment
Hydraulic height adjustment	980mm
Mechanical height adjustment	300mm
Dimension
Transport size	6975x2500x3420mm
Weight
Weight	11,700kg
