Vibratory Roller RWYL31BC

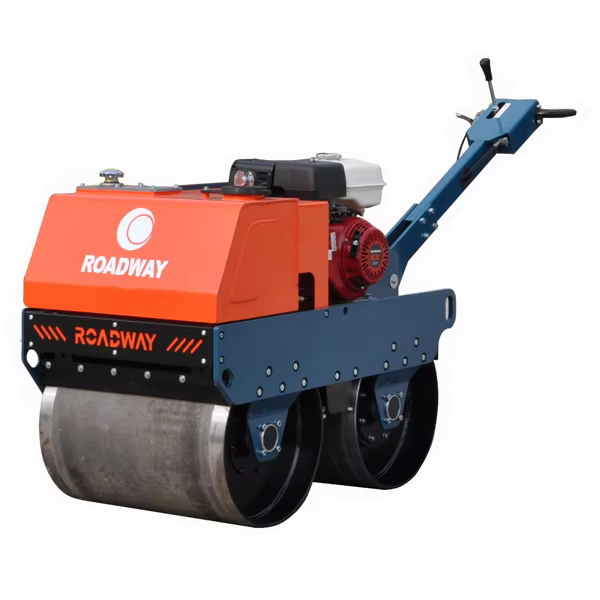

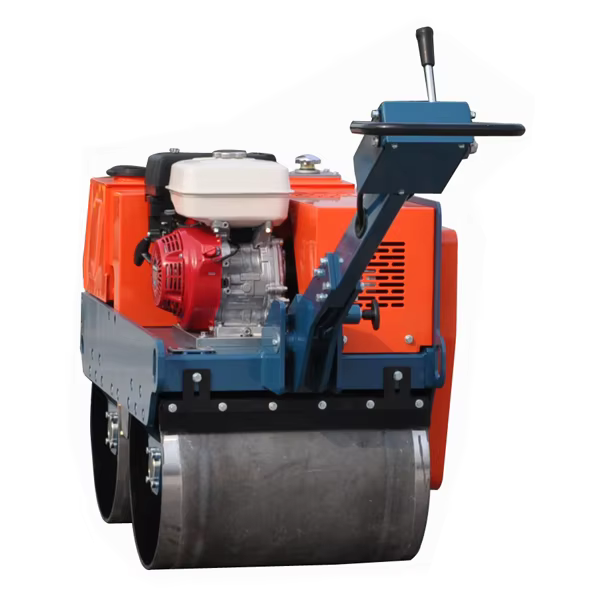

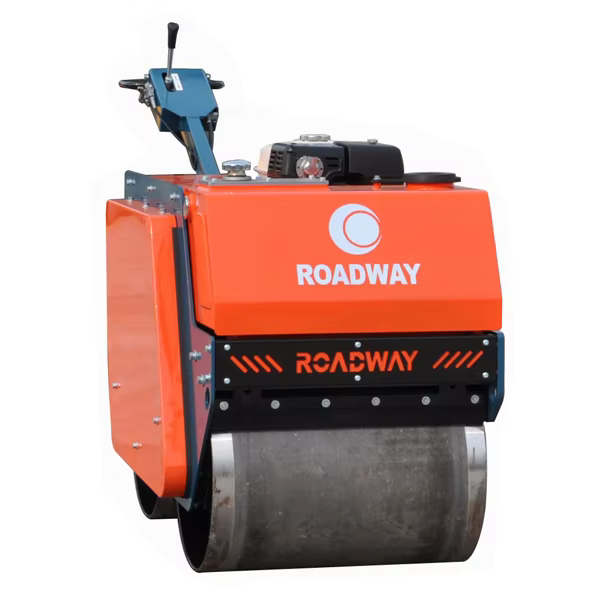

Walk-behind double drums vibratory roller RWYL31BC/B

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn.

Product characteristics

China famous brand motor and pump, rear drum vibrate, manual steering.

1.Famous brand engine, excellent performance, easy to start-up;

2.Adjusting height mechanism of handrail, storage erectly, easy to transport;

3.NSK bearing and MITSUBOSHI V-belt;

4. Plastic treated, anti-rust, anti-corrosion and beautiful.

Type	RWYL31BC/B
Run
Speed	0-1.8km/h (Forward and back)
Climbing capacity in theory	30%
Compaction
Static load forward/back	35/38N/cm
Nominal amplitude	0.6mm
Vibration frequency	70Hz
Exciting force	13.5kN
Water tank volume	30L
Working
Drive	Hydraulic pump and motor
Vibration	Manual clutch
Engine
Model	Changchai 186F/HONDA, GX270
Type	Diesel/Gasoline engine, air cooled, 4stroke, OHV, single cylinder
Power	9.0hp/3600/rpm
Oil tank volume	6L
Lubricant L	1.1L
Fuel consumption	313g/kWh
Dimension
Width of steel wheel	600mm
Diameter of steel wheel	450mm
Tread	600mm
Total length(keep handrail level)	2460mm
Total width	750mm
Total height(keep handrail upright)	1800mm
Packing size	1460x810x1230mm
Weight
Working weight	550kg
