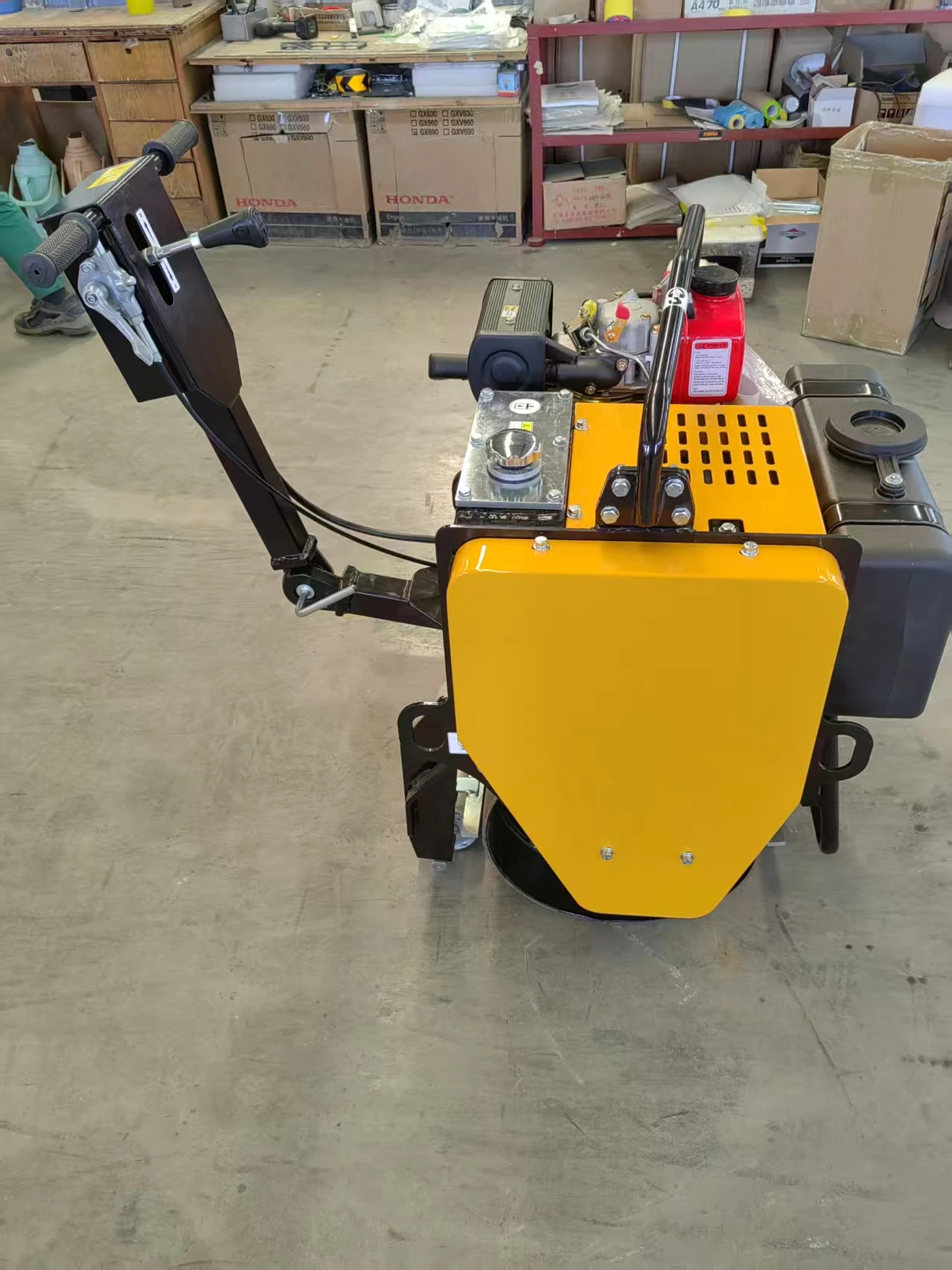

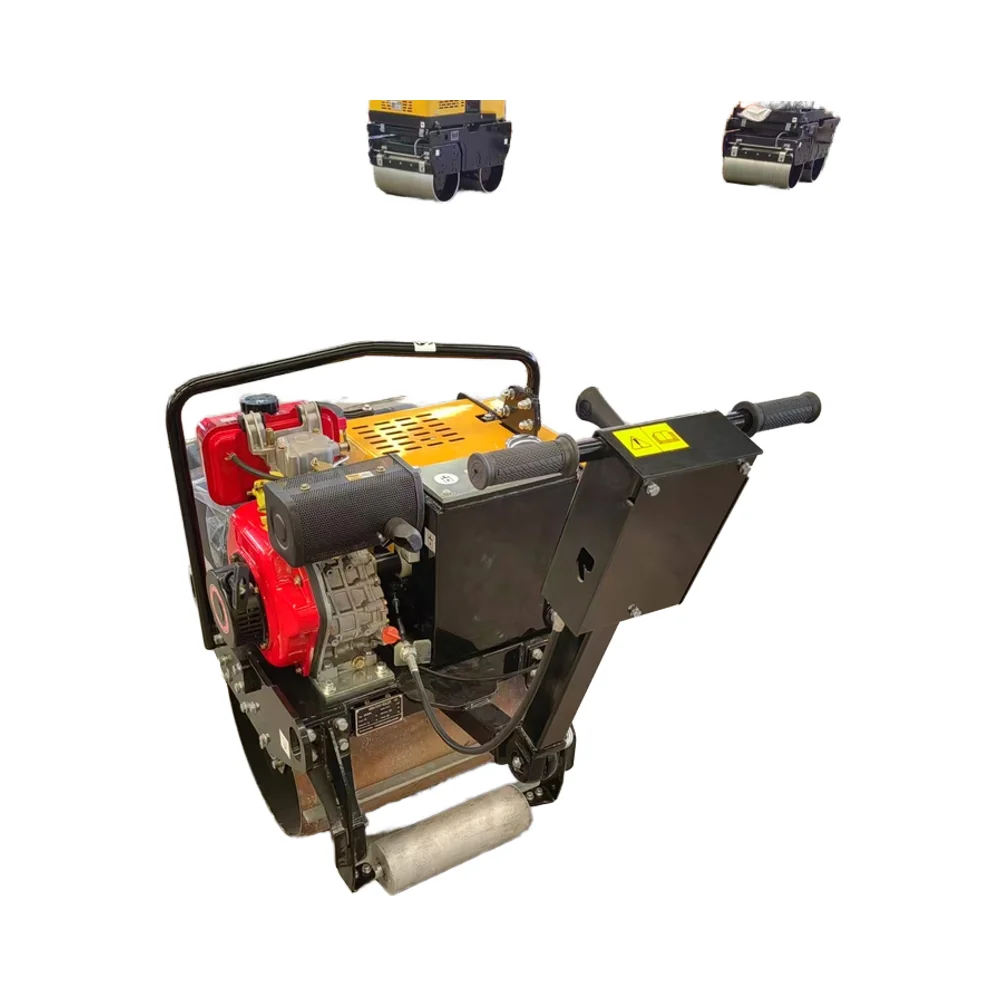

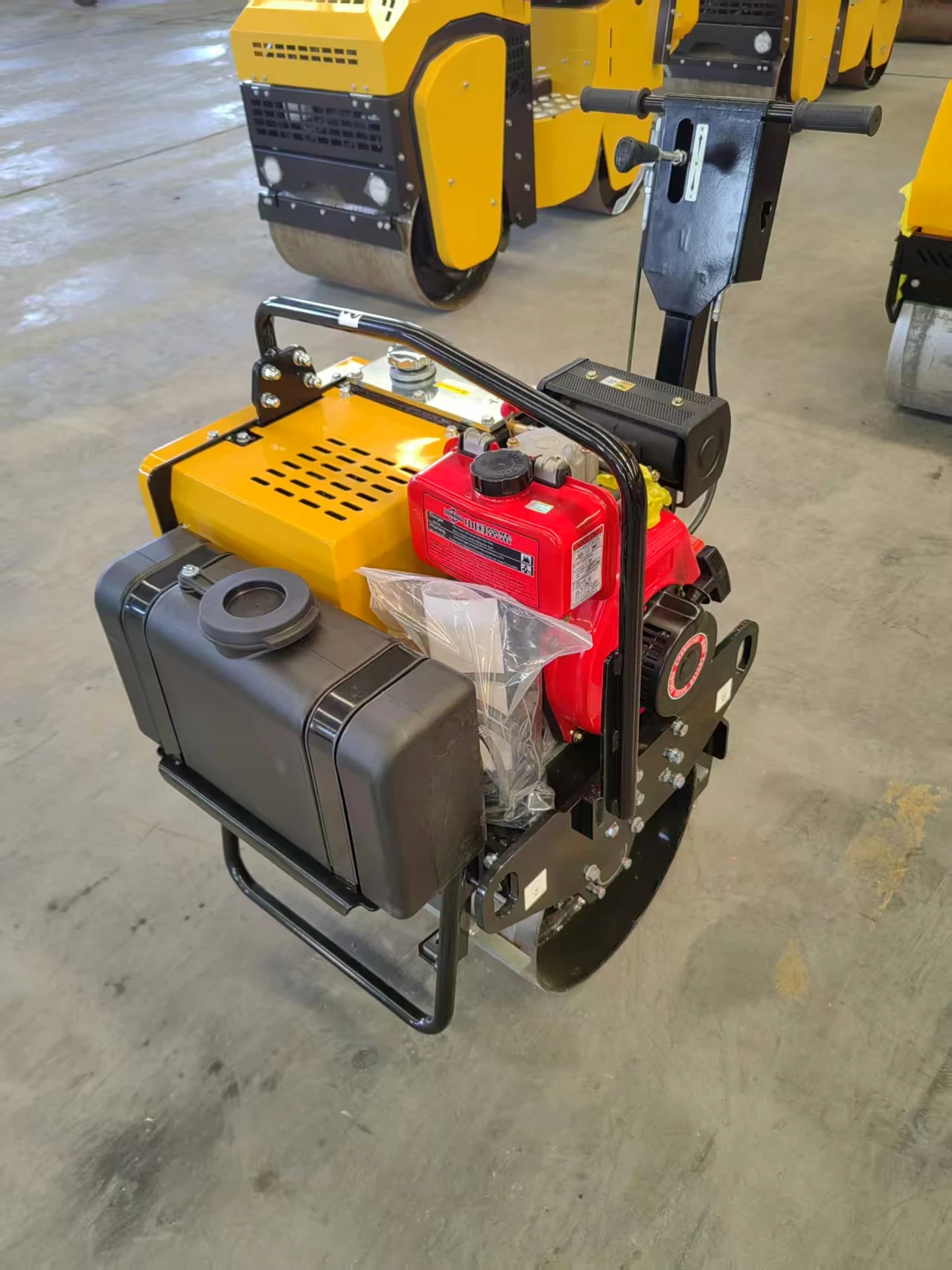

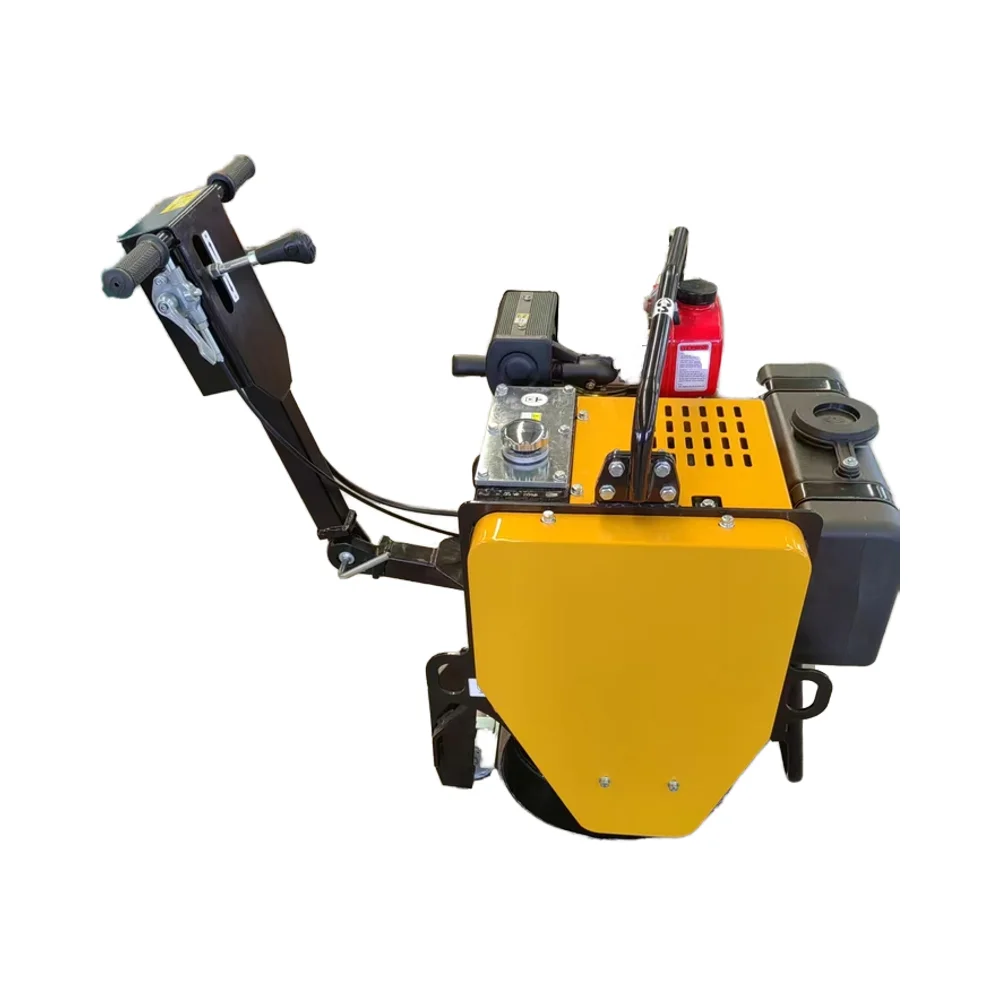

Walk-behind single drum road roller RWYL11C
The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn.
1. Diesel engine;
2.Chinese hydraulic pump and motor drives the machine walking;
3. Plane gear structure, is easy to adjust the height of handrail
Type |
RWYL11C |
Run |
|
Speed |
1.5km/h |
Climbing capacity in theory |
20% |
Compaction |
|
Static load |
45N/cm |
Nominal amplitude |
0.6mm |
Vibration frequency |
70Hz |
Exciting force |
12KN |
Water tank volume |
15L |
Walking |
|
Drive |
Hydraulic pump and motor |
Vibration |
Mechanical drive, automatic centrifugal clutch |
Engine |
|
Model |
170F |
Type |
Diesel engine, air cooled, 4stroke,single cylinder |
Power |
4hp/3600rpm |
Oil tank volume |
2.5L |
Lubricant L |
0.6L |
Fuel consumption |
280g/kWh |
Dimension |
|
Width of steel wheel |
560mm |
Diameter of steel wheel |
400mm |
Total length(keep handrail level) |
1380mm |
Total width |
700mm |
Total height(keep handrail upright) |
1050mm |
Packing size |
1050x900x1200mm |
Weight |
|
Working weight |
298kg |
|
|
