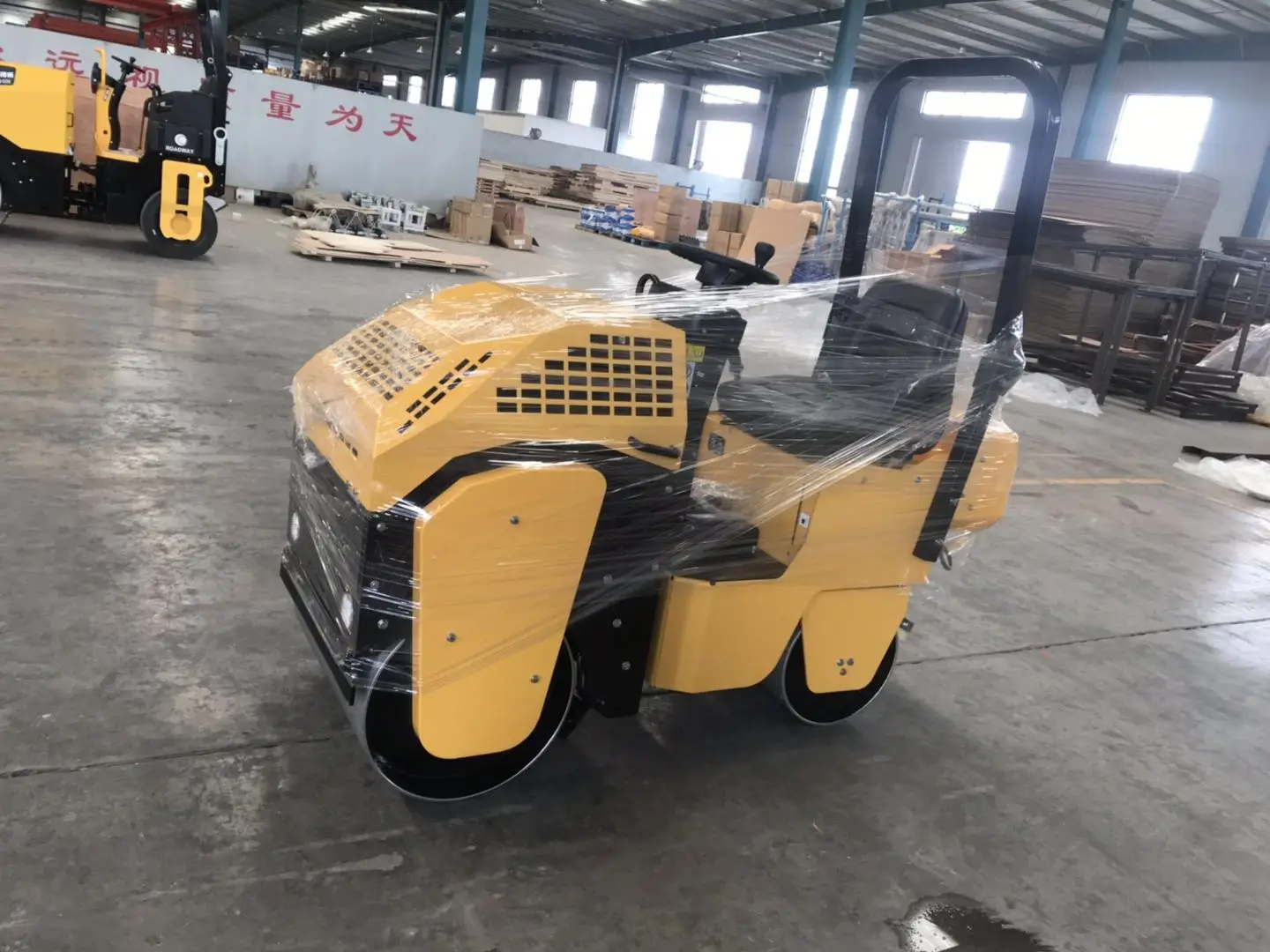

Vibratory Roller RWYL41

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.

Product characteristics

USA hydraulic pump and motor drive, electromagnetic clutch, mechanical steering.

1. Honda gasoline engine

2. American hydraulic pump and motor drive the front drum stepless speed walking.

3. Plastic water tank free from corrosion and convenient for water-spraying.

4. Electromagnetic clutch, integrated control lever, easy to operate.

5. Water-spraying electrically controlled, user-friendly.

6. Foldable Roller Over Protection System.

7. LED lamp at front and rear for the convenience of night construction.

8.With CE certificate.

Type

RWYL41

Run

Speed

0-4km/h

Turning radius

1500mm

Climbing capacity in theory

25%

Compaction

Static load forward/back

50/79N/cm

Nominal amplitude

0.5mm

Vibration frequency

70Hz

Exciting force

20kN

Water tank volume

38L

Working

Drive

Hydraulic pump and motor front drum drive

Vibration

Mechanical drive, electromagnetic clutch

Turning

Hand mechanical type

Engine

Model

HONDA, GX390

Type

Gasoline engine, air cooled, 4stroke, OHV, single cylinder

Power

13.0hp/3600rpm

Fuel tank volume

6.5L

Lubricant L

1.1L

Fuel consumption

313g/kWh

Dimension

Width of steel wheel(Forward and back)

700/540mm

Diameter of steel wheel(Forward and back)

500/400mm

Tread

1345mm

Total length

1930mm

Total width

800mm

Total height

1750mm

Packing size

2120x950x1550mm

Weight

Working weight

780kg
