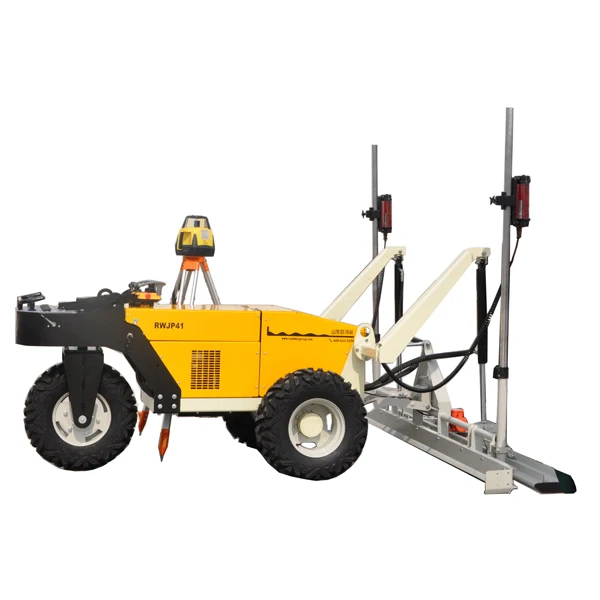

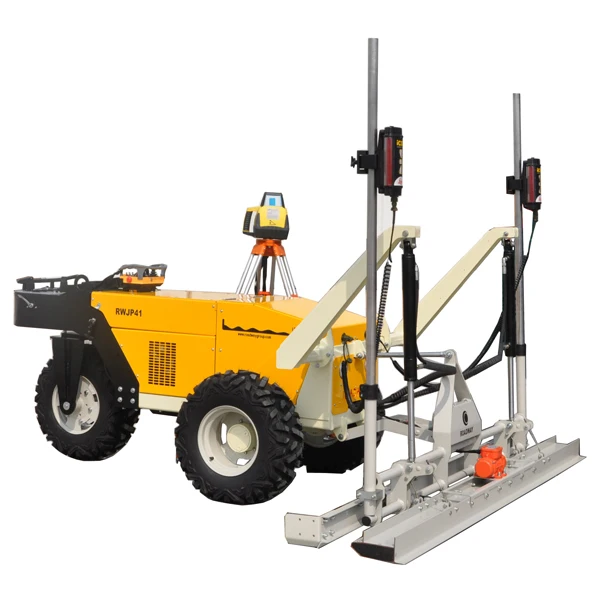

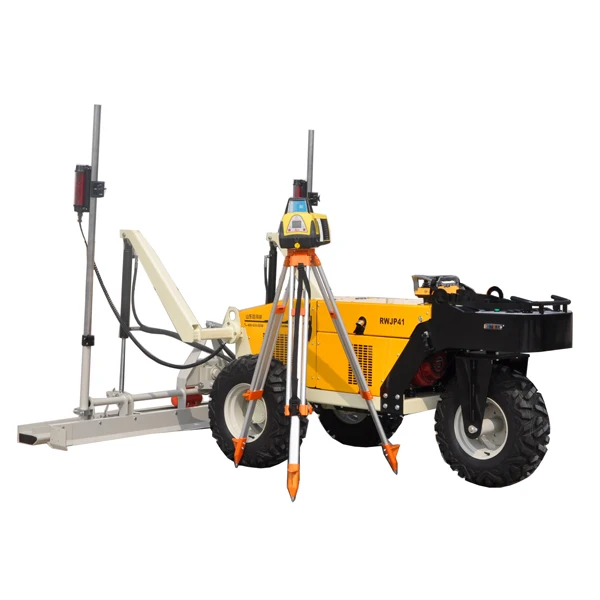

Laser Screed RWJP41

Introduction

Remote Control Concrete Laser screed RWJP41,

Fully hydraulic type

The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

Model	RWJP41
Engine
Model	HONDA GX390 Electric start
Type	Gasoline engine, air cooled, 4 stroke, OHV, Single cylinder
Power	13hp/3600rpm
Lubricant L	1.12L
Fuel oil volume	6.5L
Fuel consumption	313g/kWh
Running device
Drive	Hydraulic motor and motor
Tyre	Antiskid tyre
Running speed	0-45m/min
Suggest working speed	5m/min
Screed head
Type	Hydraulic control, self-leveling
Width	2500mm
Exciting force	500N
Vibration frequency	50Hz
Laser control system
Control type	Microcomputer control
Size and weight
Working size	2780×2622×1980mm
Weight	410kg
