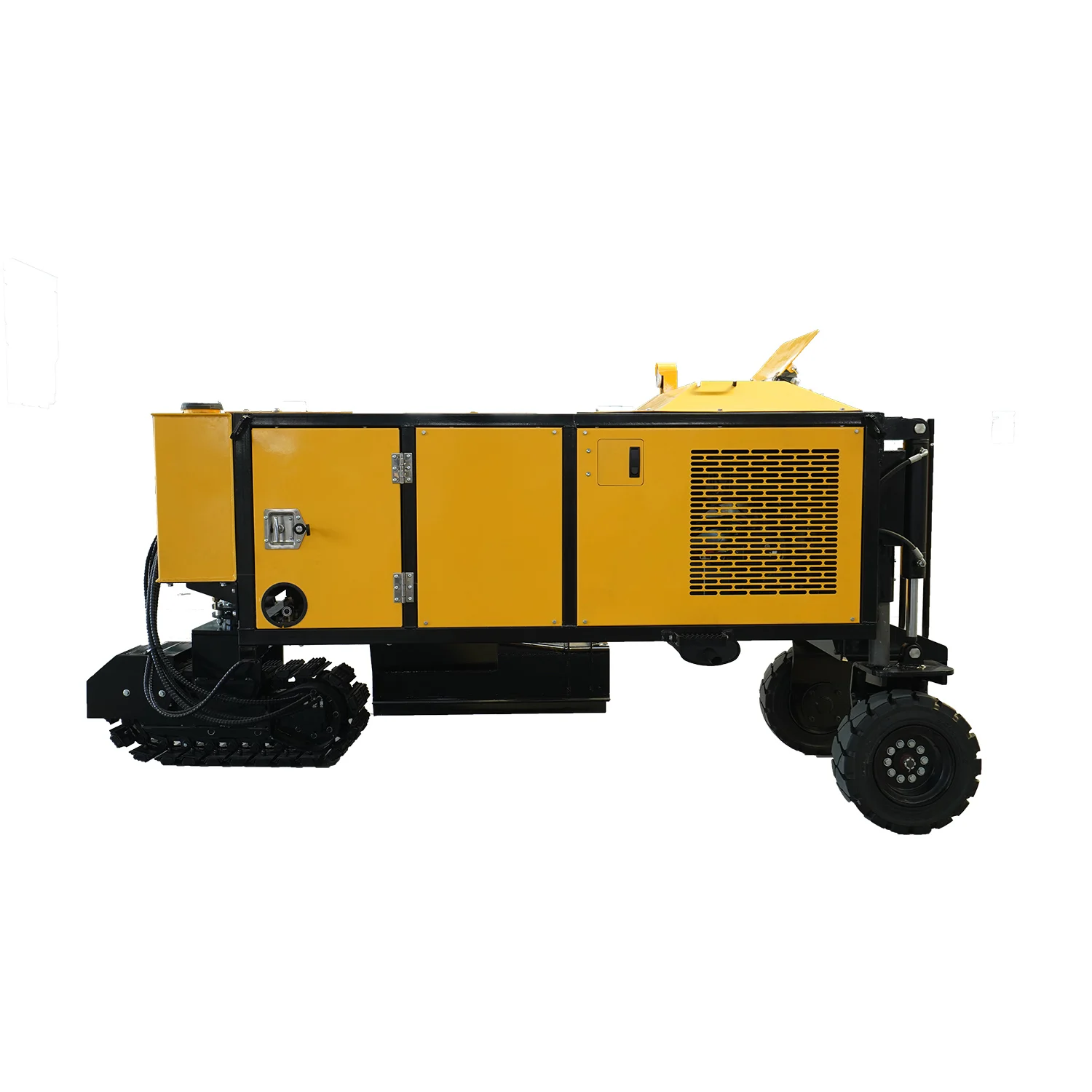

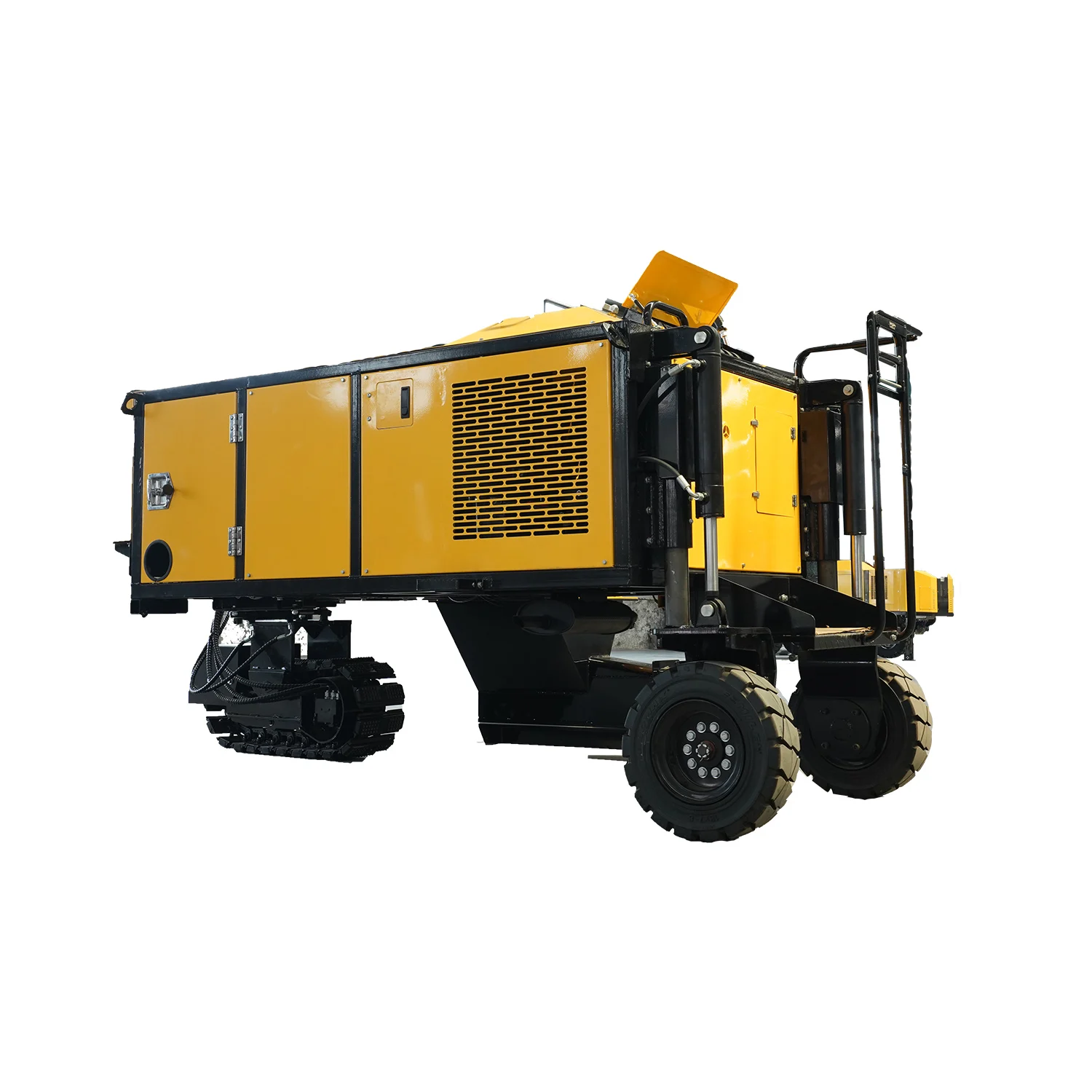

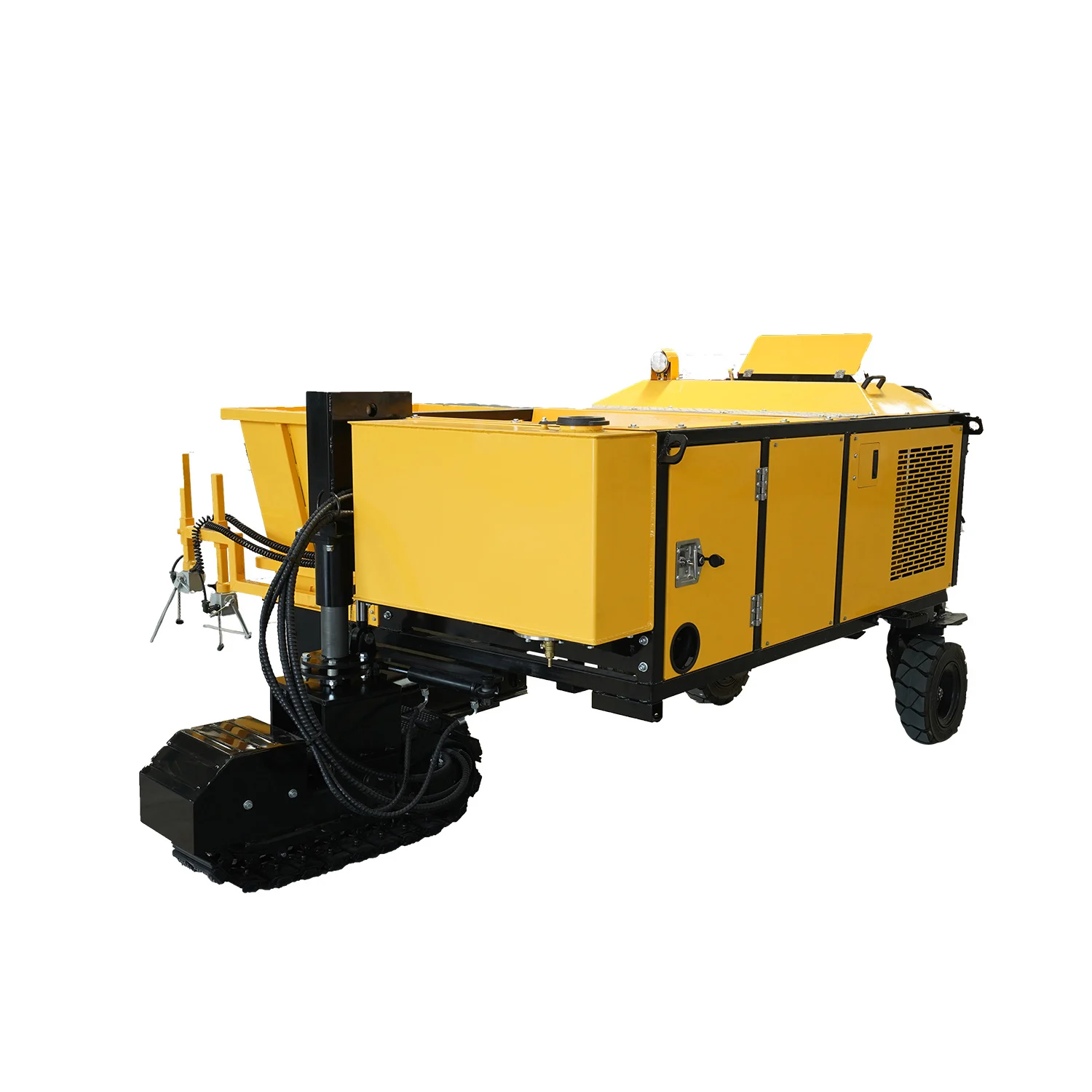

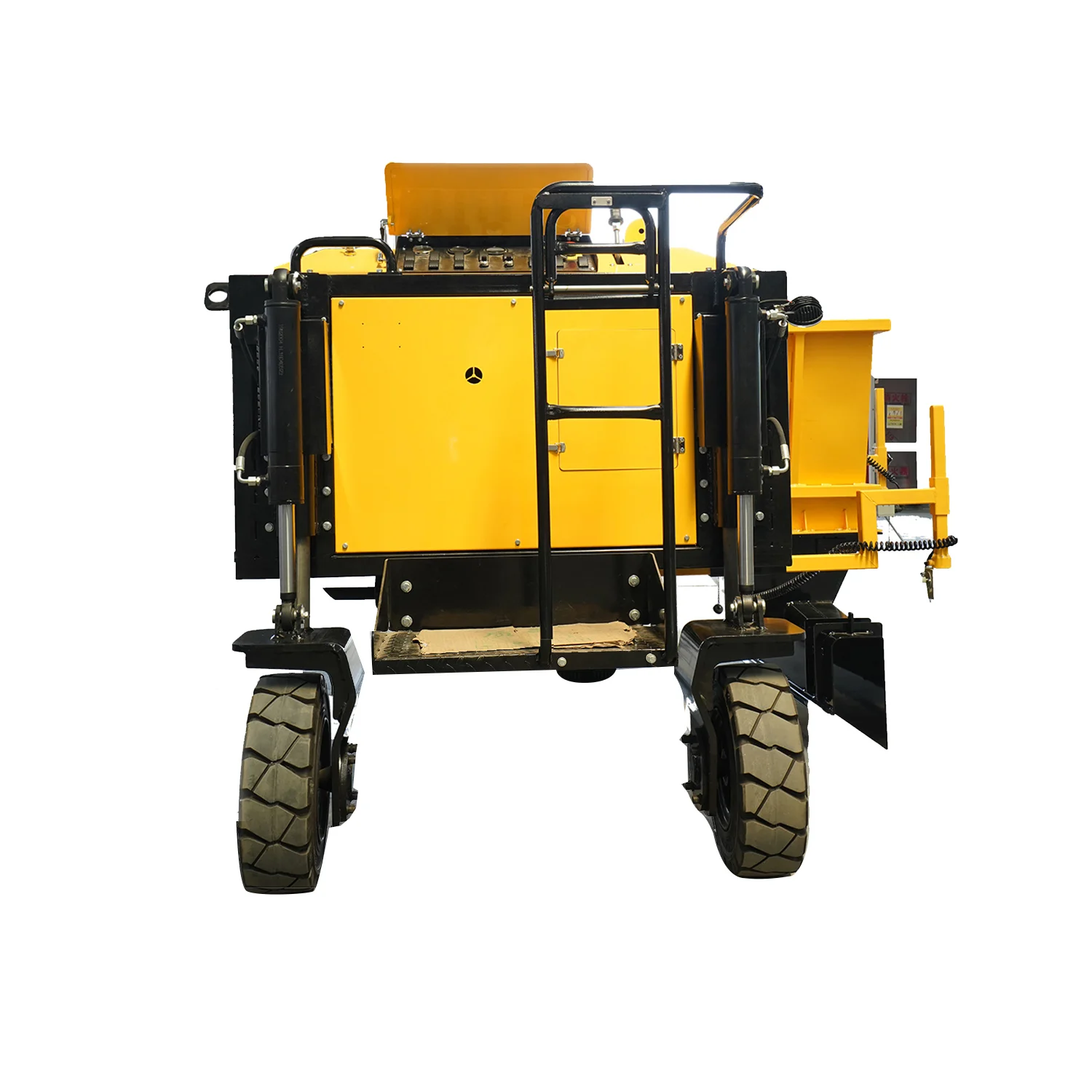

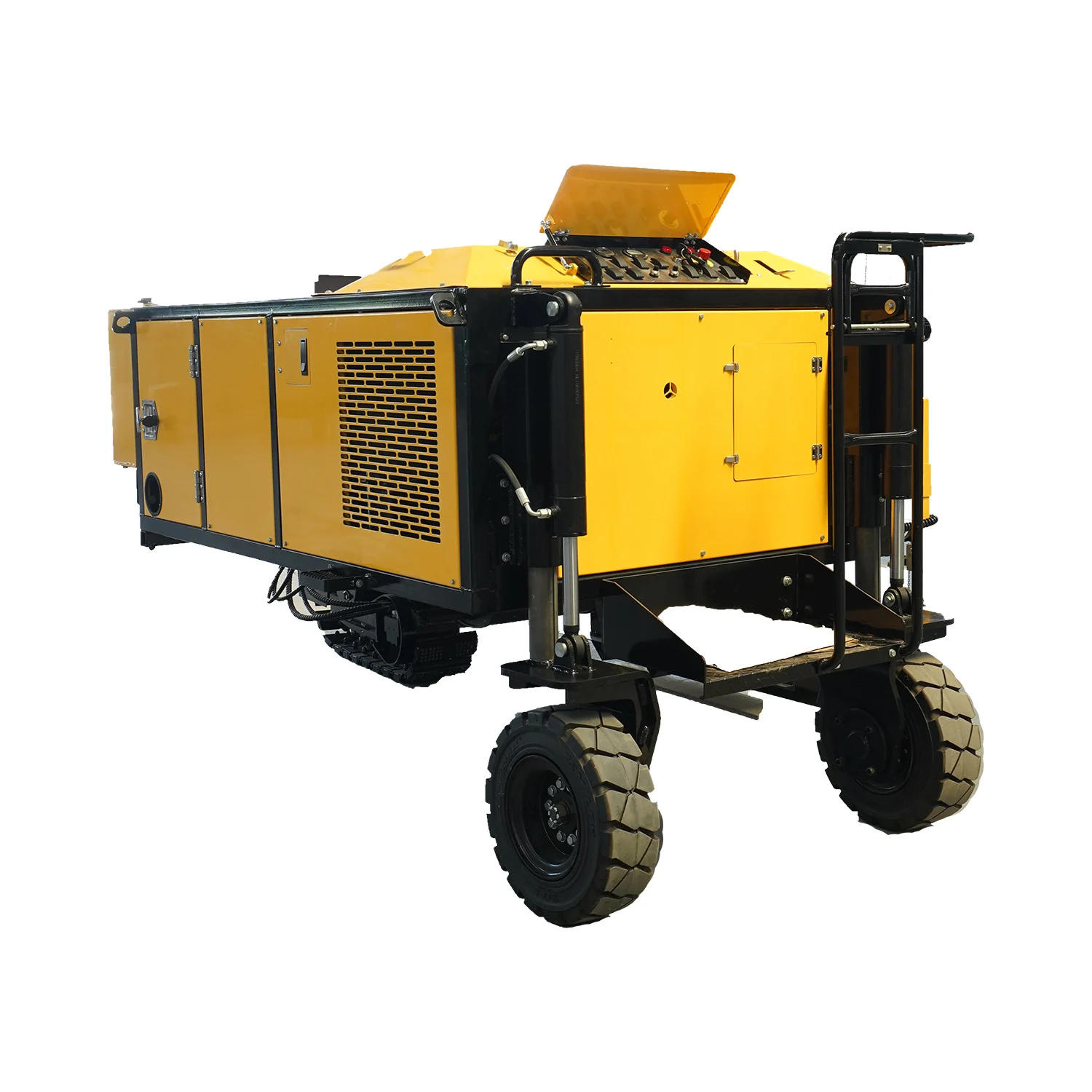

Curb Paver RWHM31

1.       With HONDA gasoline engine or YANMAR diesel engine

2.       With imported Danfoss hydraulic variable plunger pump

3.       Integrated micro computer control panel, easy operation

4.       Forward, Reverse and Steering all controlled by control lever, easy operation

5.       With hydraulic rod, high frequency and strong power

6.       With high sensitivity tilt sensor, to control direction

7.       With imported U.S.A Eaton driving motor

8.       With hydraulic high pressure washing pump, can clean machine any time

9.       With imported Germany DEUTSCH connectors, waterproof and dustproof

Type

RWHM31

RWHM31C

Engine

Model

HONDA GX630

YANMAR

Type

Gasoline Engine, air cooled, two cylinder

Diesel Engine, liquid cooled, three cylinder

Power

20hp/3600rpm

20hp/3000rpm

Fuel tank volume

60L

60L

Lubricant L

1.5L

2.2L

Fuel consumption

313g/kWh

281g/kWh

Traveling system

Driving

Hydraulic motor

Wheel

Solid puncture-proof tyre

Speed

0-70m/min

Vibration system

Vibrating rod

              Hydraulic vibrating rod

Nominal amplitude

1.5mm

Vibrating frequency

Adjustable

Exciting force

11kN(under 10000rpm)

Control system

Control mode

Auto/Manual

Automatic control

Steering, Transverse slope and Longitudinal slope by high accuracy sensor

Clean system

Power

Hydraulic motor

Theoretical flow

20L/min

Theoretical pressure

7Mpa

Working

Speed

0-15m/min

Mold size

Width 100cm*Height 60cm

Dimension

Overall dimension

2610x1970x1500mm

Weight

Weight

1200kg

1260kg
