Vibratory Roller RWYL91

  • Introduction
Introduction

WHY CHOOSE US.jpg

Ride-on hydraulic vibratory Trench roller RWYL91



The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn. This is the latest model of light duty rollers in the domestic.

Product characteristics

Double motors drive, hydraulic steering and vibrate, fully hydraulic roller.

1. Imported Poclain hydraulic variable plunger pump, drives the machine stepless speed walking.

2. Imported Permco hydraulic motor drives the front drum vibrating.

3. Imported Poclain motors drives the two wheels walking, with automatic brake system

4.Integrated micro computer control plate, with operation, monitoring, alarm and other functions

5.Control levers with neutral lock with vibration button, ensure safety start.

6. Herringbone tires, suitable for backfill construction








Type

RWYL91

Run



Speed

0-9km/h

Turning radius

2200mm

Climbing capacity in theory

55%

Compaction



Static load forward/back

130N/cm

Nominal amplitude

1.6/0.8mm

Vibration frequency

41Hz

Exciting force

85/43kN

Working



Drive

Variable plunger pump, radial plunger hydraulic motor

Vibration

 Gear pump, Gear motor

Turning

Hydraulic steering

Engine



Model

Yanmar

Type

Diesel engine, water-cooled, 4stroke, three cylinder

Power

35kW/3000rpm

Fuel tank volume

50L

Lubricant L

6L

Fuel consumption

261g/kWh

Dimension



Width of steel wheel

1200mm

Diameter of steel wheel

1030mm

Thread

1804mm

Total length

3350mm

Total width

1350mm

Total height

2750mm

Packing size

3450×1550×224mm

Weight



Working weight

3600kg

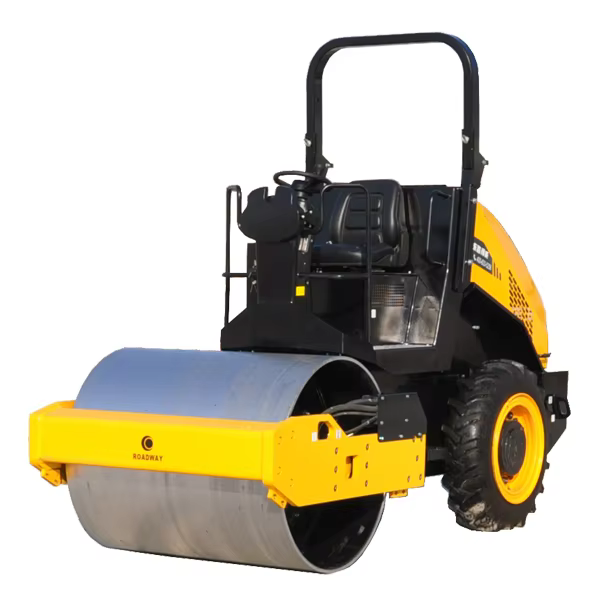

RWYL91-1.jpg RWYL91-2.jpg

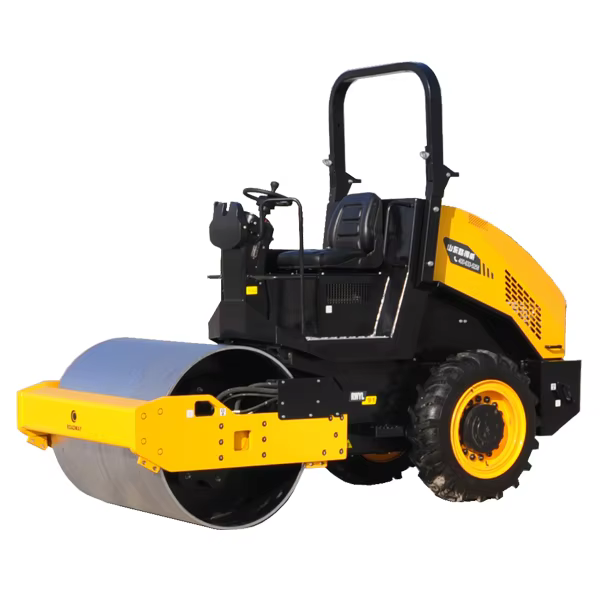

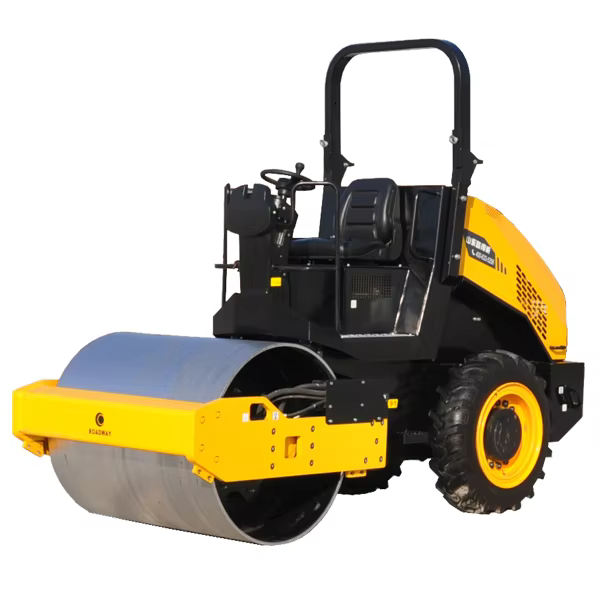

RWYL91-3.jpg RWYL91-4.jpg

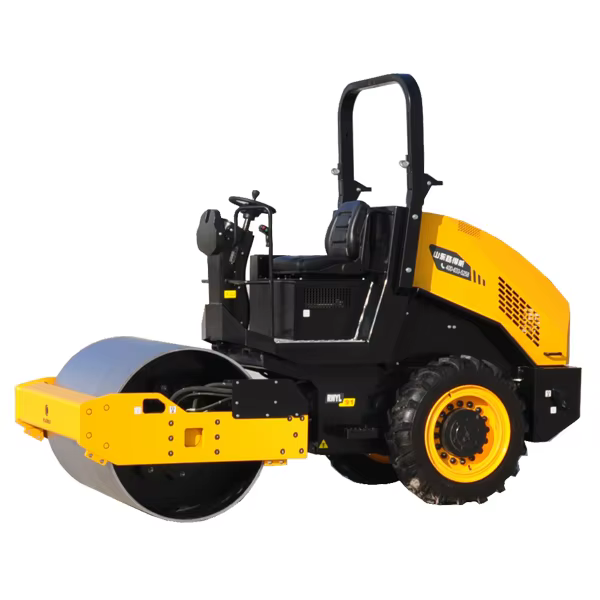

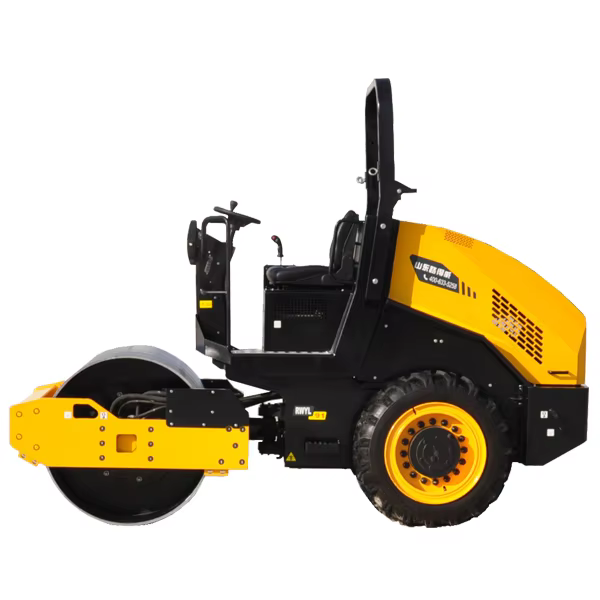

RWYL91-5.jpg RWYL91-6.jpg
