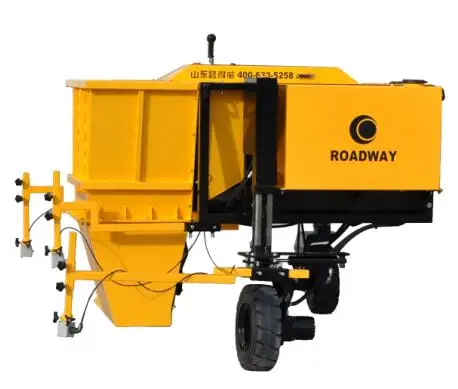

Automatic Curb Paver RWHM31B
|
1. With Honda gasoline engine 2. With imported Danfoss hydraulic variable plunger pump 3. Integrated micro computer control panel, easy operation 4. Forward, Reverse and Steering all controlled by control lever, easy operation 5. With hydraulic rod, high frequency and strong power 6. With high sensitivity tilt sensor, to control direction 7. With imported U.S.A Eaton driving motor 8. With hydraulic high pressure washing pump, can clean machine any time 9. With imported Germany DEUTSCH connectors, waterproof and dustproof
|
|
|
|
Type |
RWHM31 |
|
|
Engine |
|
|
|
Model |
Honda GX630
|
|
|
Type |
Gasoline engine,air cooled,2 cylinder
|
|
|
Power |
20hp/3000rpm |
|
|
Fuel tank volume |
60L |
|
|
Lubricant L |
1.5 L |
|
|
Fuel consumption |
313g/kWh |
|
|
Traveling system |
|
|
|
Driving |
Hydraulic motor |
|
|
Wheel |
Front is pedrail back is solid tyre
|
|
|
Speed |
0-50m/min |
|
|
Vibration system |
|
|
|
Vibrating rod |
Hydraulic vibrating rod |
|
|
Nominal amplitude |
1.5mm |
|
|
Vibrating frequency |
Adjustable |
|
|
Exciting force |
11kN(under 10000rpm) |
|
|
Control system |
|
|
|
Control mode |
Auto/Manual |
|
|
Automatic control |
Steering, Transverse slope and Longitudinal slope by high accuracy sensor |
|
|
Clean system |
|
|
|
Power |
Hydraulic motor |
|
|
Theoretical flow |
20L/min |
|
|
Theoretical pressure |
7Mpa |
|
|
Working |
|
|
|
Speed |
0-15m/min |
|
|
Mold size |
Width 100cm*Height 60cm |
|
|
Dimension |
|
|
|
Overall dimension |
3120x1970x1450mm
|
|
|
Weight |
|
|
|
Weight |
1300kg |
|
