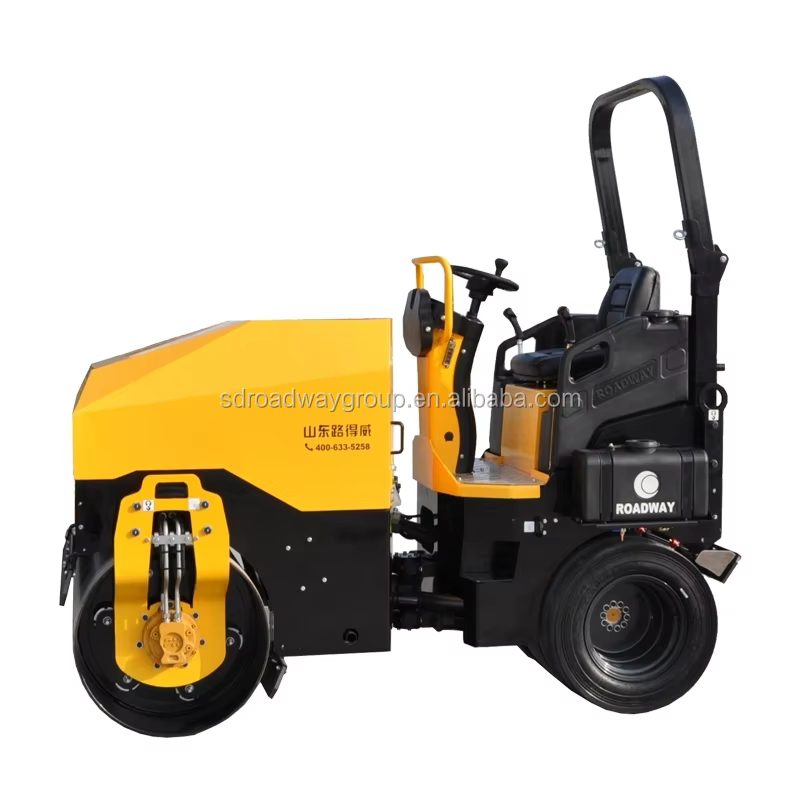

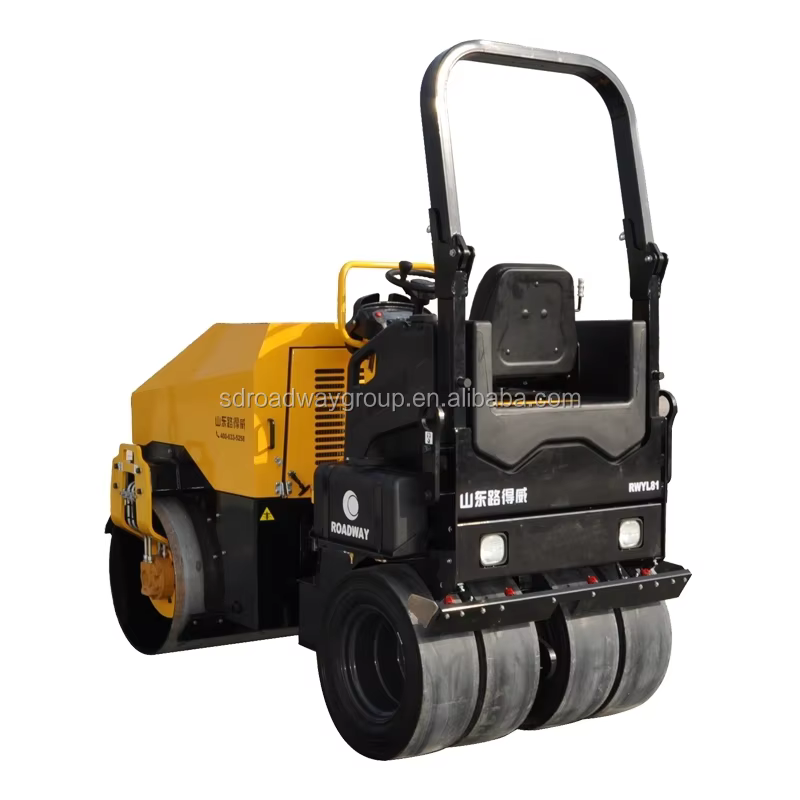

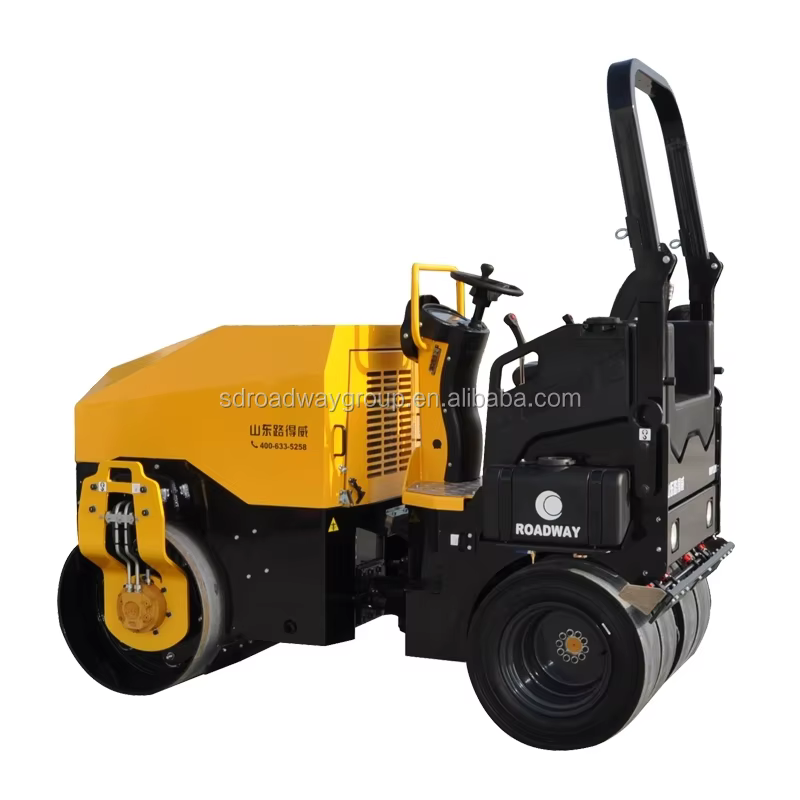

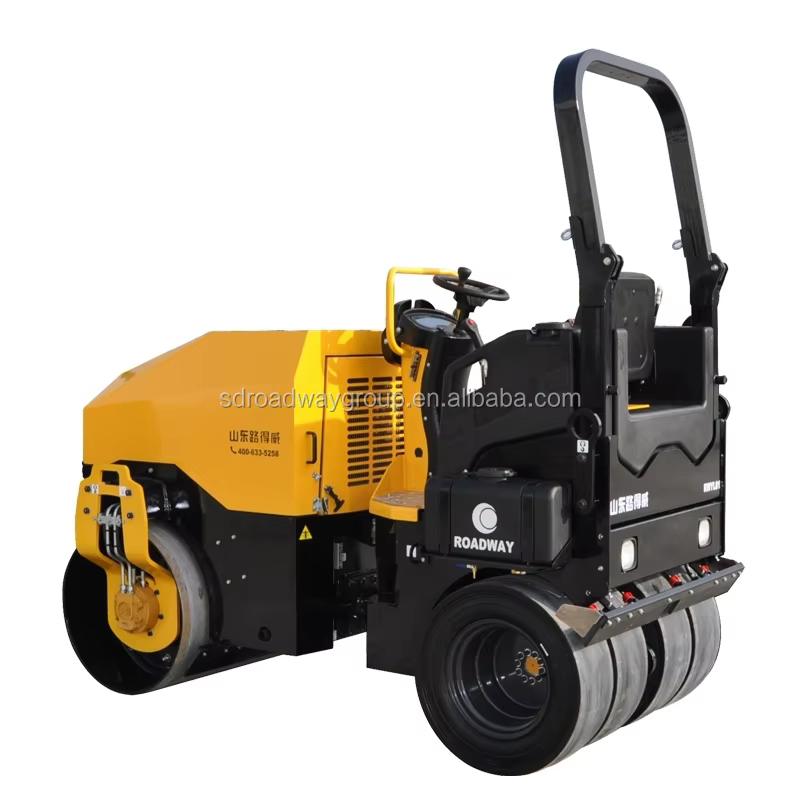

Vibratory Roller RWYL82B

Type

RWYL82B

Run

Speed

0-12km/h

Turning radius

2600mm

Climbing capacity in theory

40%

Compaction

Static load forward/back

125N/cm

Nominal amplitude

0.5mm

Vibration frequency

60Hz

Front exciting force

30kN (Front drum)

Each tyre loading

381.25kg

Water tank volume

200L

Engine

Model

YANMAR 3TNV88

Type

Diesel, liquid-cooled, three cylinder

Power

26.9kW/3000rpm

Fuel tank volume

40L

Lubricant L

6L

Fuel consumption

263g/kWh

Dimension

Width of steel wheel

1200mm

Diameter of steel wheel

700mm

Tread

1760mm

Total length

2495mm

Total width

1310mm

Total height

2440mm

Packing size

2600×1450×1950mm

Weight

Working weight

3050kg
