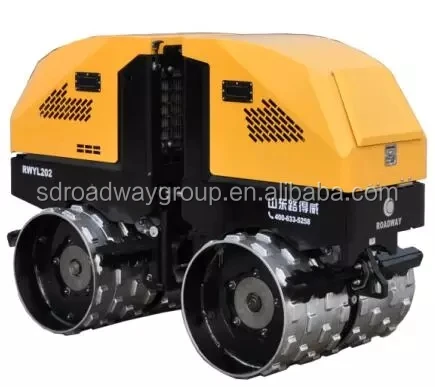

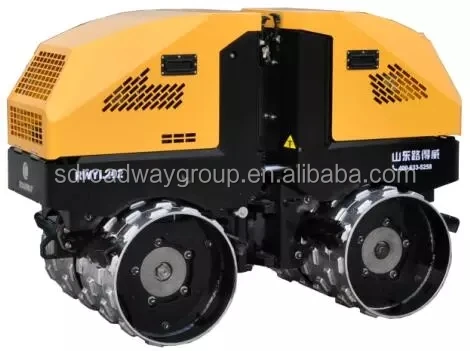

Vibratory Roller RWYL202

Type

RWYL202

Run

Speed

1.2km/h(low) 2.4km/h(high)

Turning radius

1700mm

Climbing capacity in theory

50%

Compaction

Static load forward/back

86/90N/cm

Nominal amplitude

1.7mm

Vibration frequency

42Hz

Exciting force

70kN/35kN(Hydraulic control)

Engine

Model

HONDA GX690

Type

Gasoline engine, water cooled,double cylinder

Power

20hp/3600rpm

Fuel tank volume

30L

Lubricant L

1.8L

Fuel consumption

313g/kWh

Dimension

Width of steel wheel

600mm/850 mm

Diameter of steel wheel

520mm

Tread

1000mm

Total length

1900mm

Total width

850mm

Total height

1300mm

Packing size

2030x950x1460mm

Weight

MAX. working weight

1700kg
