Vibratory Roller RWYL42BC

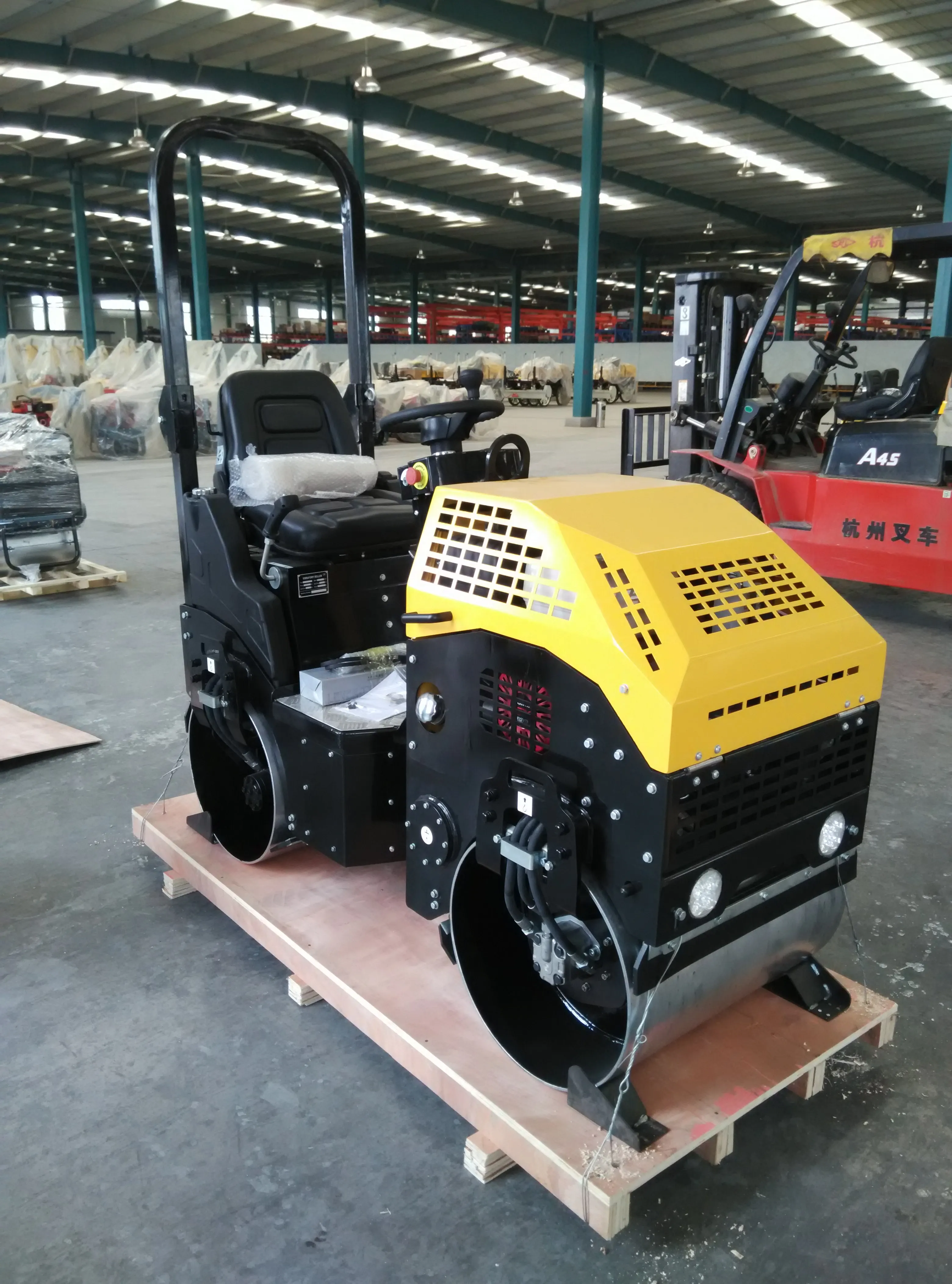

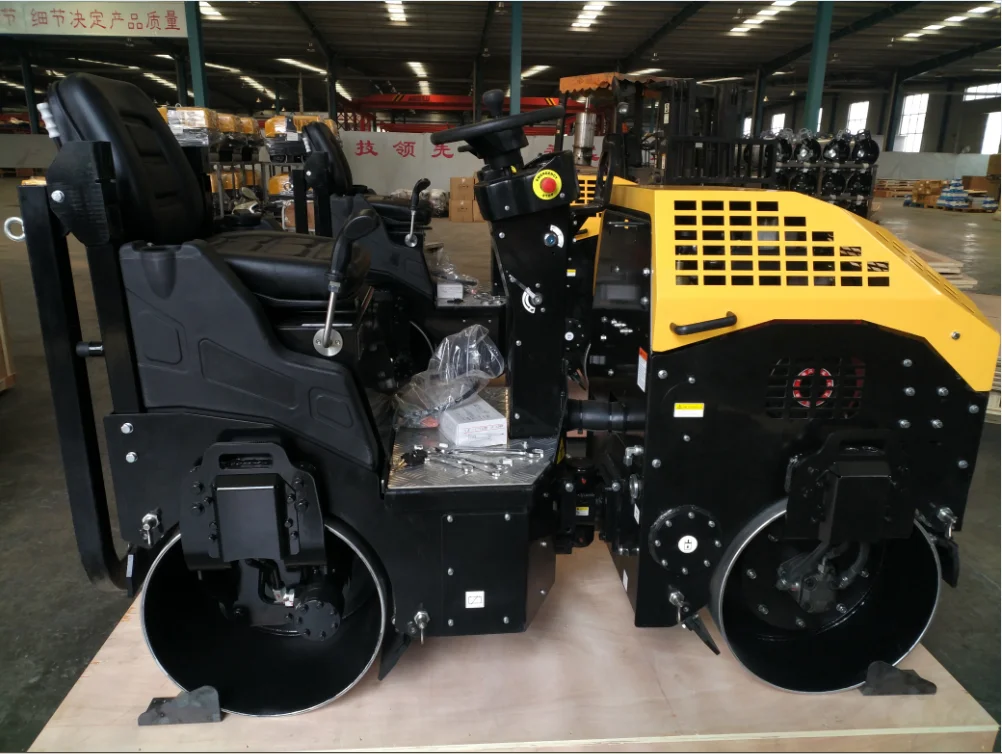

Ride-on vibratory roller(Fully hydraulic)RWYL42BC

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.

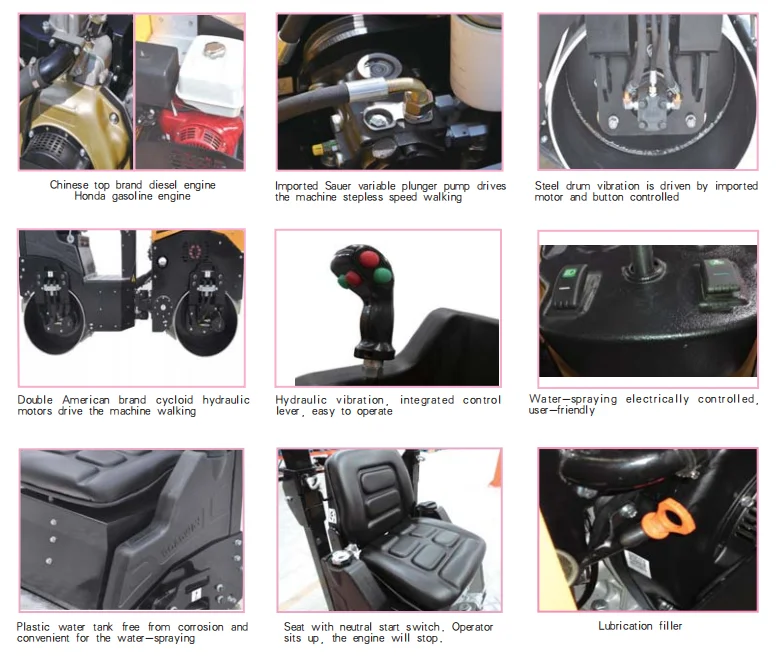

Product characteristics

Double motors drive, hydraulic vibrate, hydraulic steering, fully hydraulic roller.

1. China top brand diesel engine.

2. Imported Poclain heavy-duty variable plunger pump drives the machine stepless speed walking.

3. Double American brand cycloid hydraulic motors drive the machine walking.

4. Plastic water tank free from corrosion and convenient for water-spraying..

5. Water-spraying electrically controlled, user-friendly.

6. LED lamp at front and rear for the convenience of night construction.

7. Foldable Roller Over Protection System.

8. Built-in drive motor, good compaction along the edge.

9.With CE certificate.

Type	RWYL42BC
Run
Speed	0-4km/h
Turning radius	2000mm
Climbing capacity in theory	30%
Compaction
Static load forward/back	57/77N/cm
Nominal amplitude	0.5mm
Vibration frequency	70Hz
Exciting force	20KN
Water tank volume	48L
Working
Drive	Hydraulic double drive
Vibration	Hydraulic vibrate
Turning	Hydraulic steering
Engine
Model	186F
Type	Diesel engine, air cooled, 4stroke, vertical type, single cylinder
Power	8.0hp/3600rpm
Fuel tank volume	15L
Lubricant L	1.65L
Fuel consumption	280g/kWh
Dimension
Width of steel wheel(Forward and back)	700mm
Diameter of steel wheel(Forward and back)	500mm
Tread	1215mm
Total length	1840mm
Total width	840mm
Total height	1820mm
Packing size	2100x970x1620mm
Weight
Working weight	970kg
